GAUTEN UAV SRV260 V-Tail Fixed-Wing Drone - Motor Version
- Listed wingspan
- 2600 mm (2.6 m)
- Listed material
- High-Strength Composite Fiberglass
- Listed payload capacity
- 4 kg
Listed values depend on the configuration. Confirm the final specifications with sales.
Export and dispatch: confirm each stage
Our current airframe order process includes Chinese dual-use export licence applications, including for bare airframes. This is our handling process, not a blanket legal classification of every product. Document preparation, export review, production and freight must be confirmed separately; approval and a total delivery date are not guaranteed.
Read the export and dispatch noticeREQUEST A QUOTE
Share the package, quantity and destination. Confirm included parts and delivery terms in your quote.
Contact sales to confirm availability.
Tell us your model, payload, application and package choice. Specifications below come from the original listing; confirm them for your final configuration.
Technical reading (English)

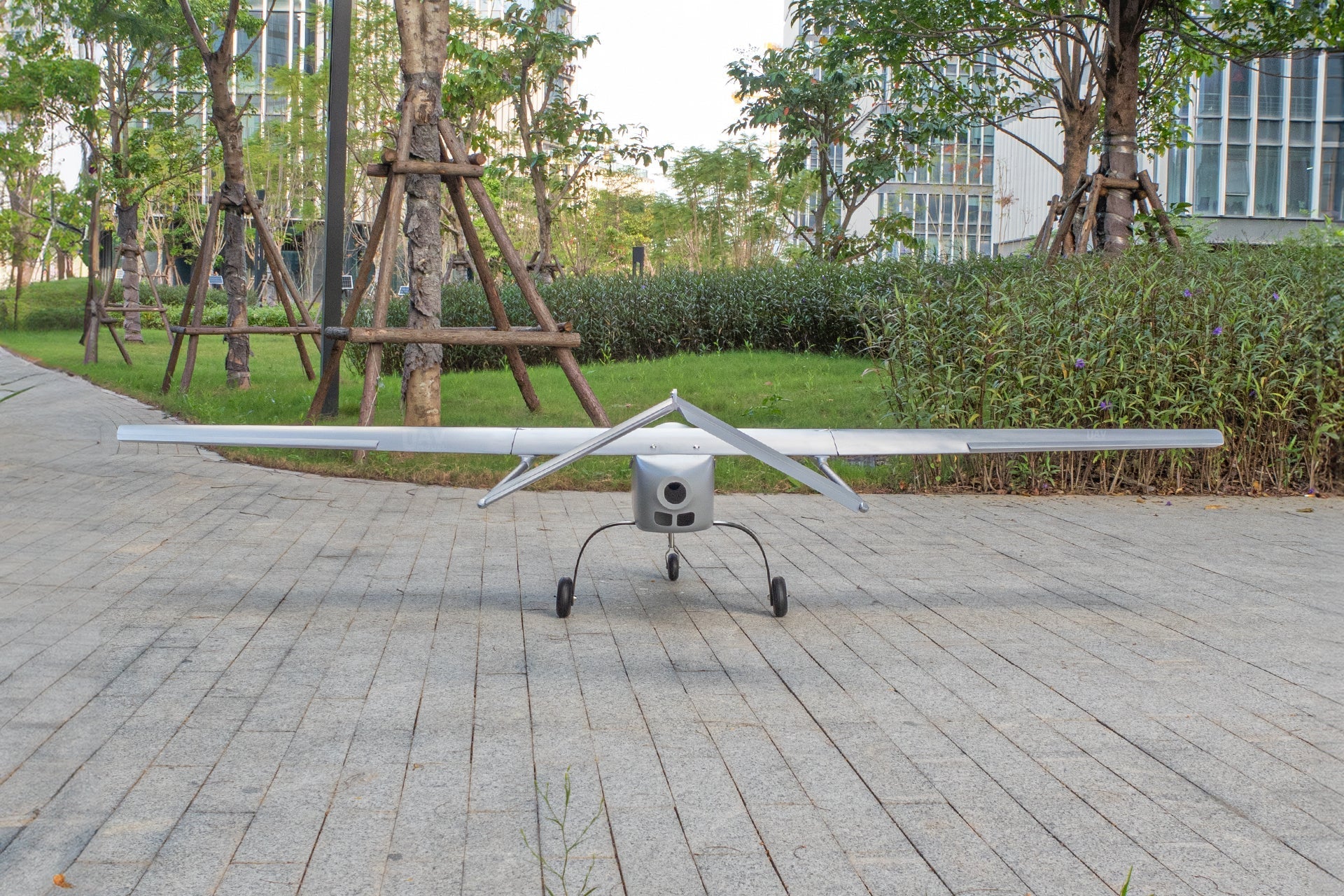

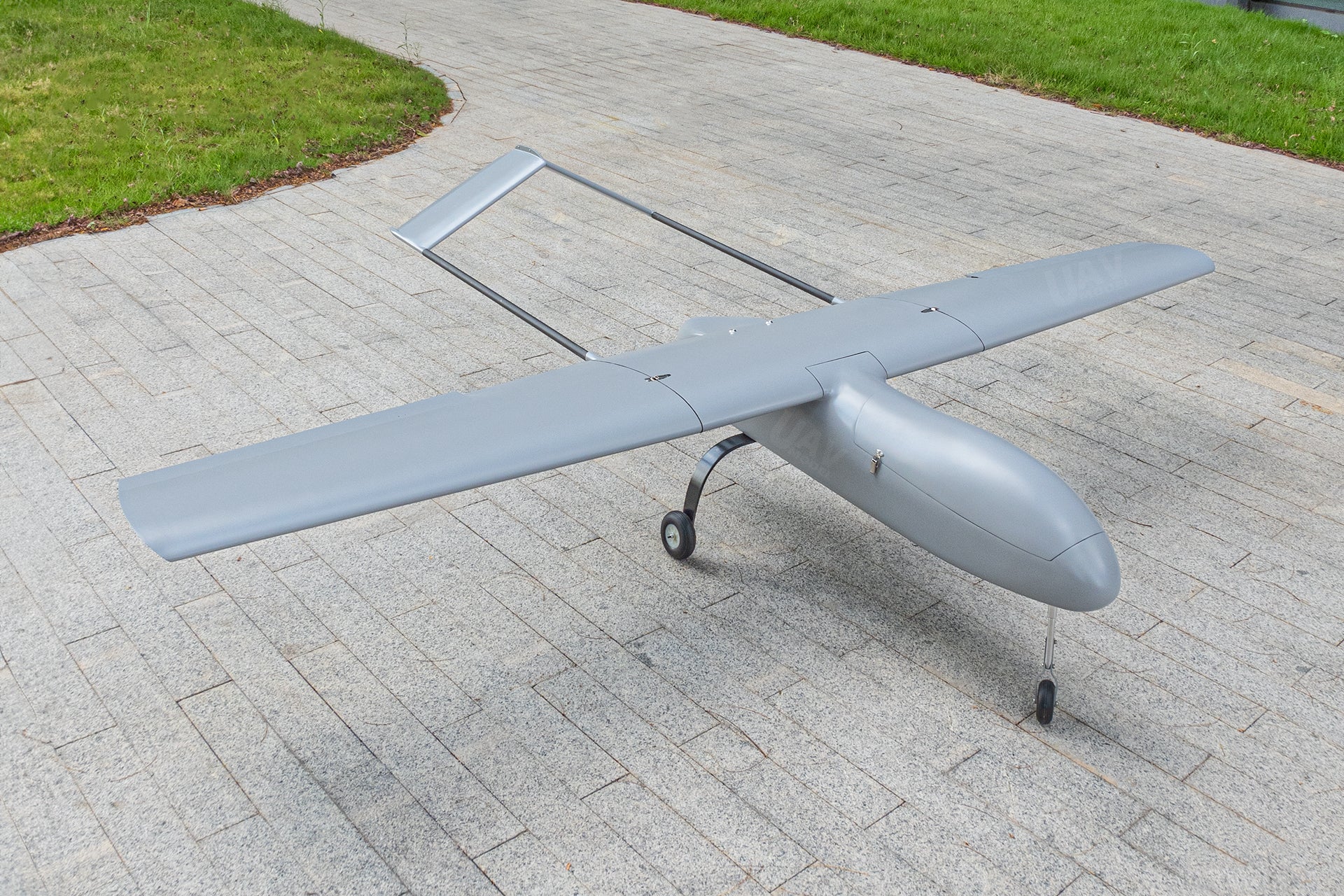

GAUTEN UAV SRV260 V-Tail Fixed-Wing Drone - Motor Version — product details

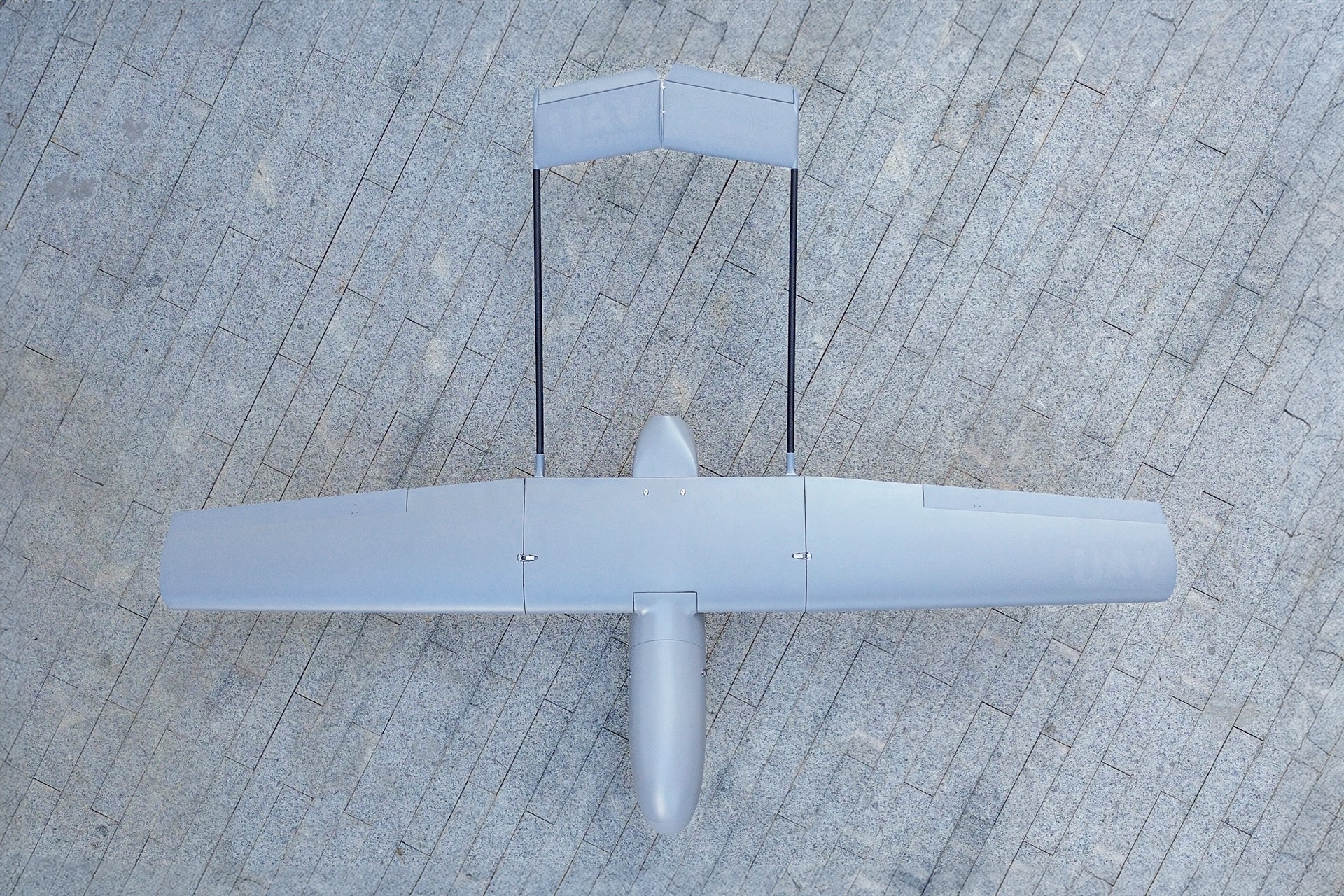

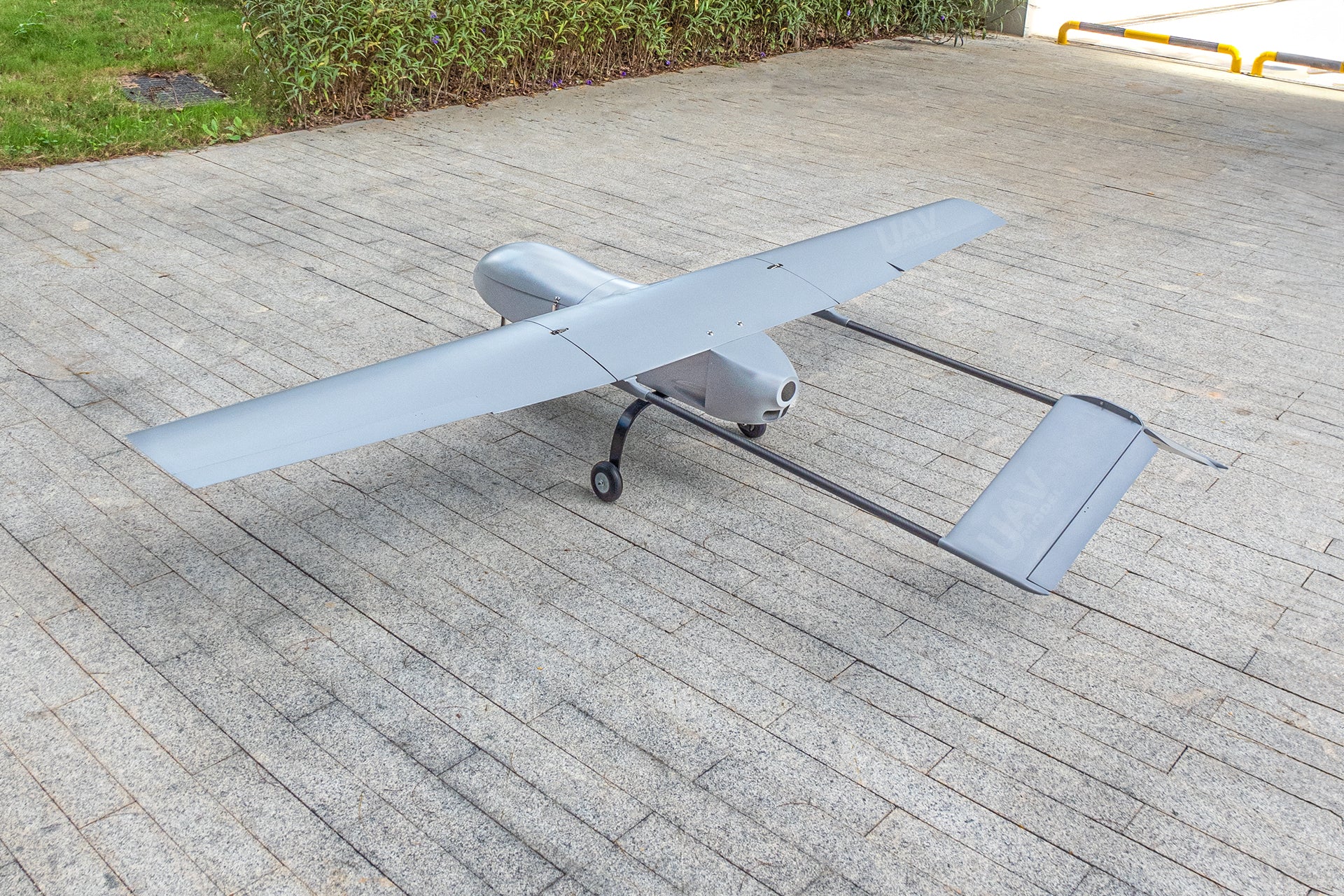

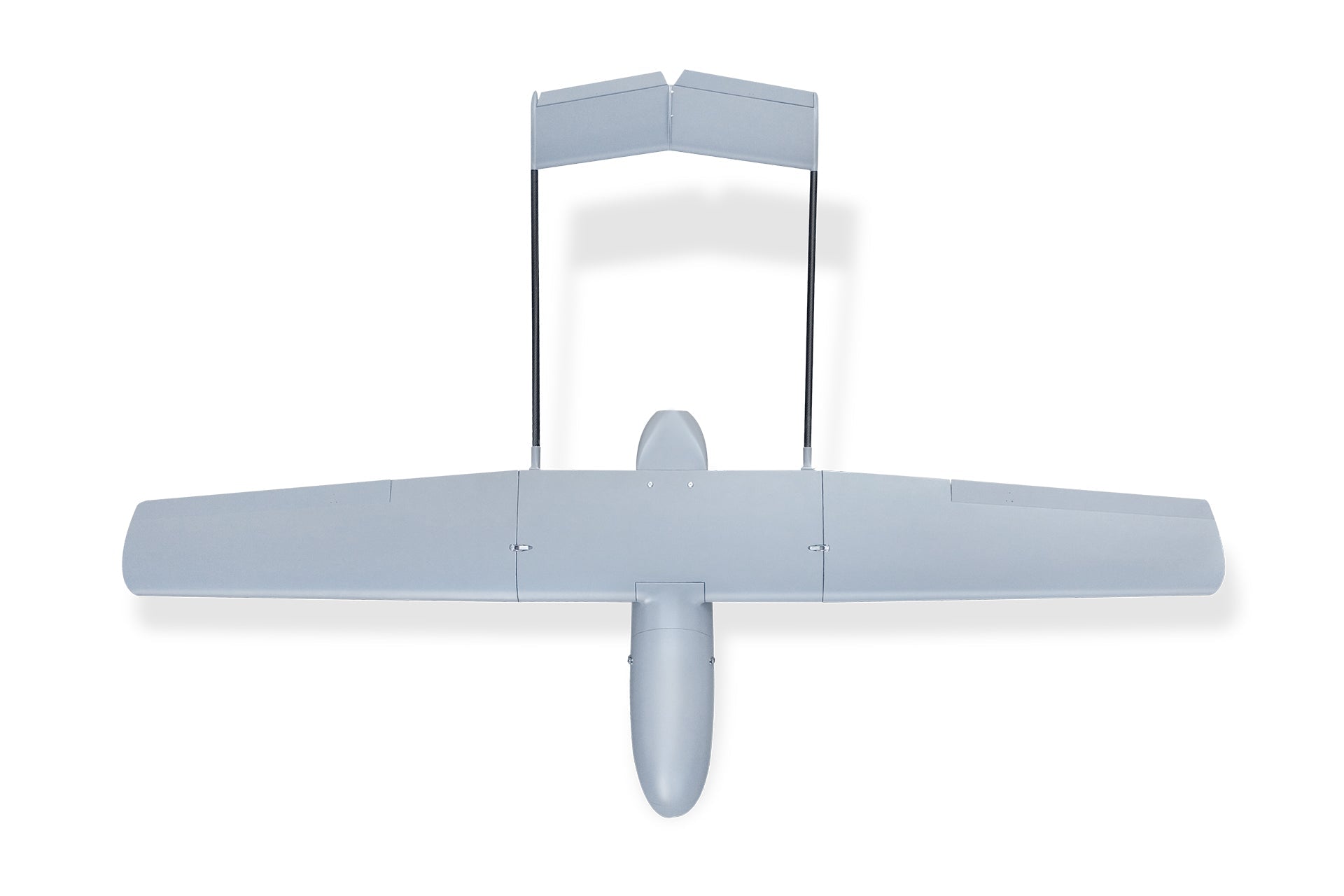

The SRV260 motor V-tail listing describes a 2600 mm glass-fiber fixed-wing drone. Use the SR260 tables to compare airframe dimensions, payload limits and motor-package components.
Payload installation: Check the listed bay dimensions and payload limit. Sensor fit also depends on mounts, balance, power and data interfaces; compatibility must be confirmed.

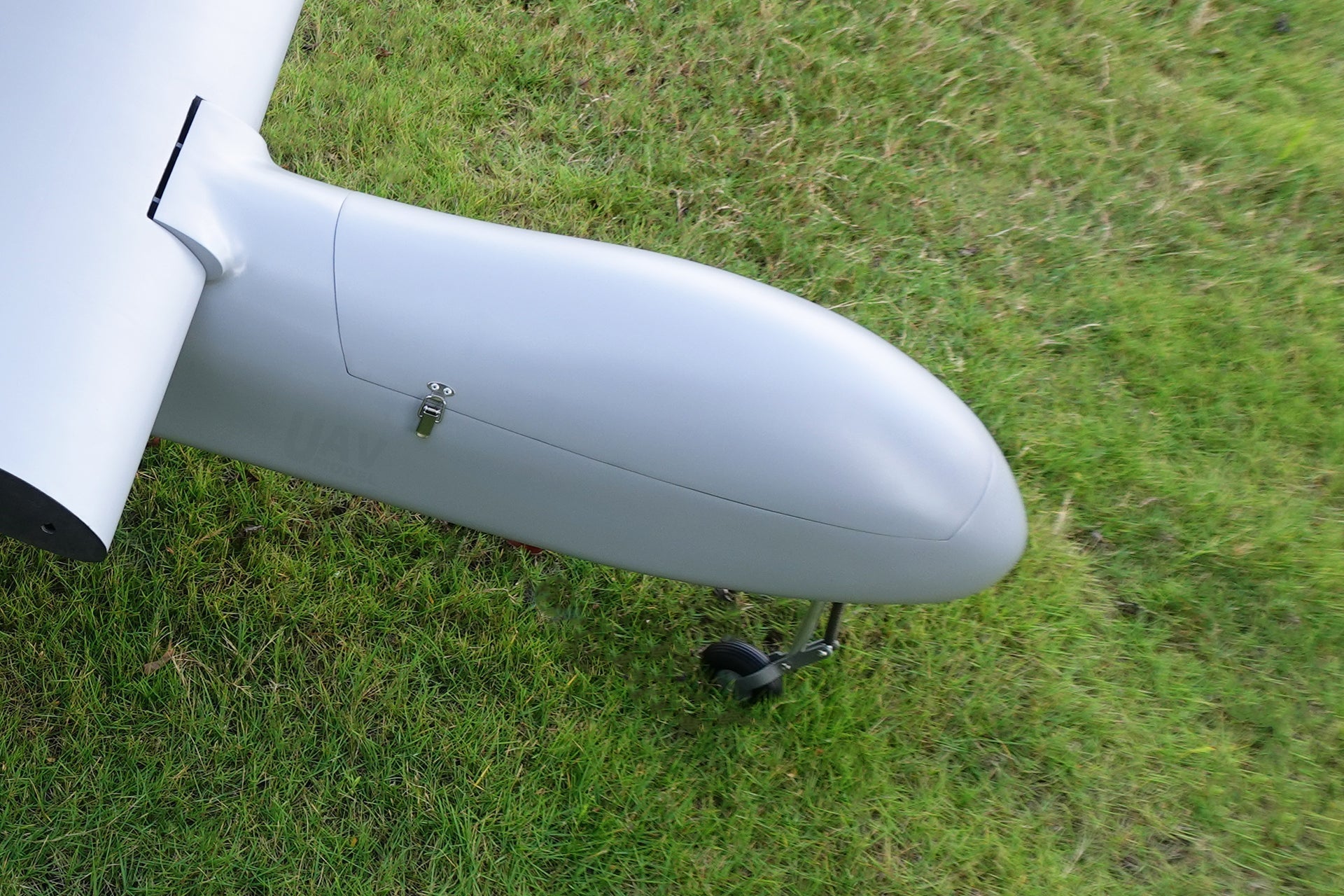

Payload space & installation
Sensor review: Check mounting access, center of gravity, cable routing and power demand with the payload installed. Ask who will verify the complete setup.
Listed performance & conditions
Battery and power: Ask for a wiring diagram and the specified voltage, cell count, capacity and connectors for this package. Confirm these together before choosing a battery.
Payload space & installation
Avionics and support: Share the flight controller, interfaces and support you need. Confirm compatibility, installation work and documentation for the exact configuration.
Airframe construction
Flight performance: Use the source-listed values in the table as a starting point. Confirm propulsion, payload, power or fuel load, weather and test conditions for your final system.
Listed technical specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Airframe Material | High-Strength Composite Fiberglass |

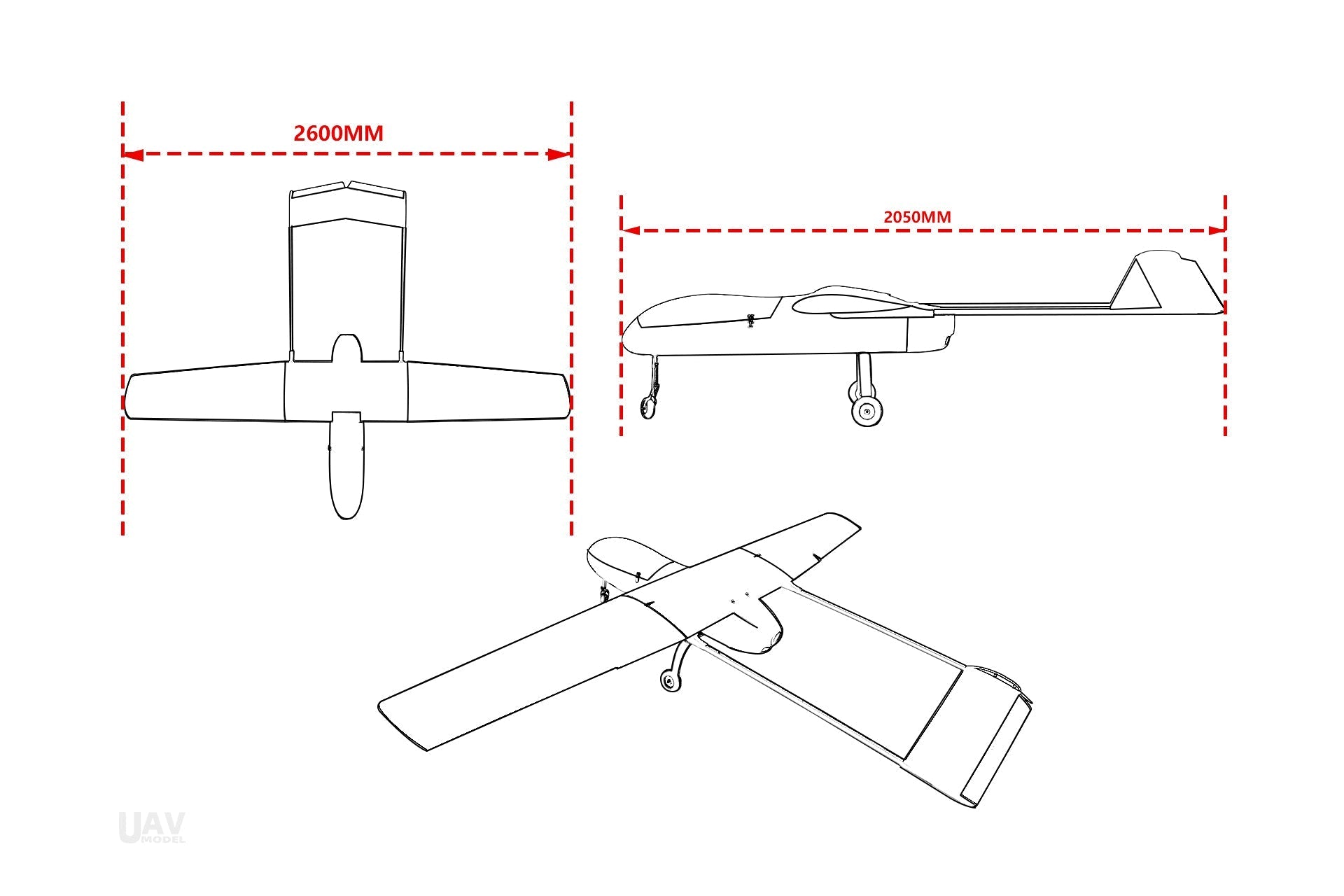

| Wingspan | 2600 mm (2.6 m) |
| Aircraft Length | 2050 mm |
| Wing Area | 88 dm² |

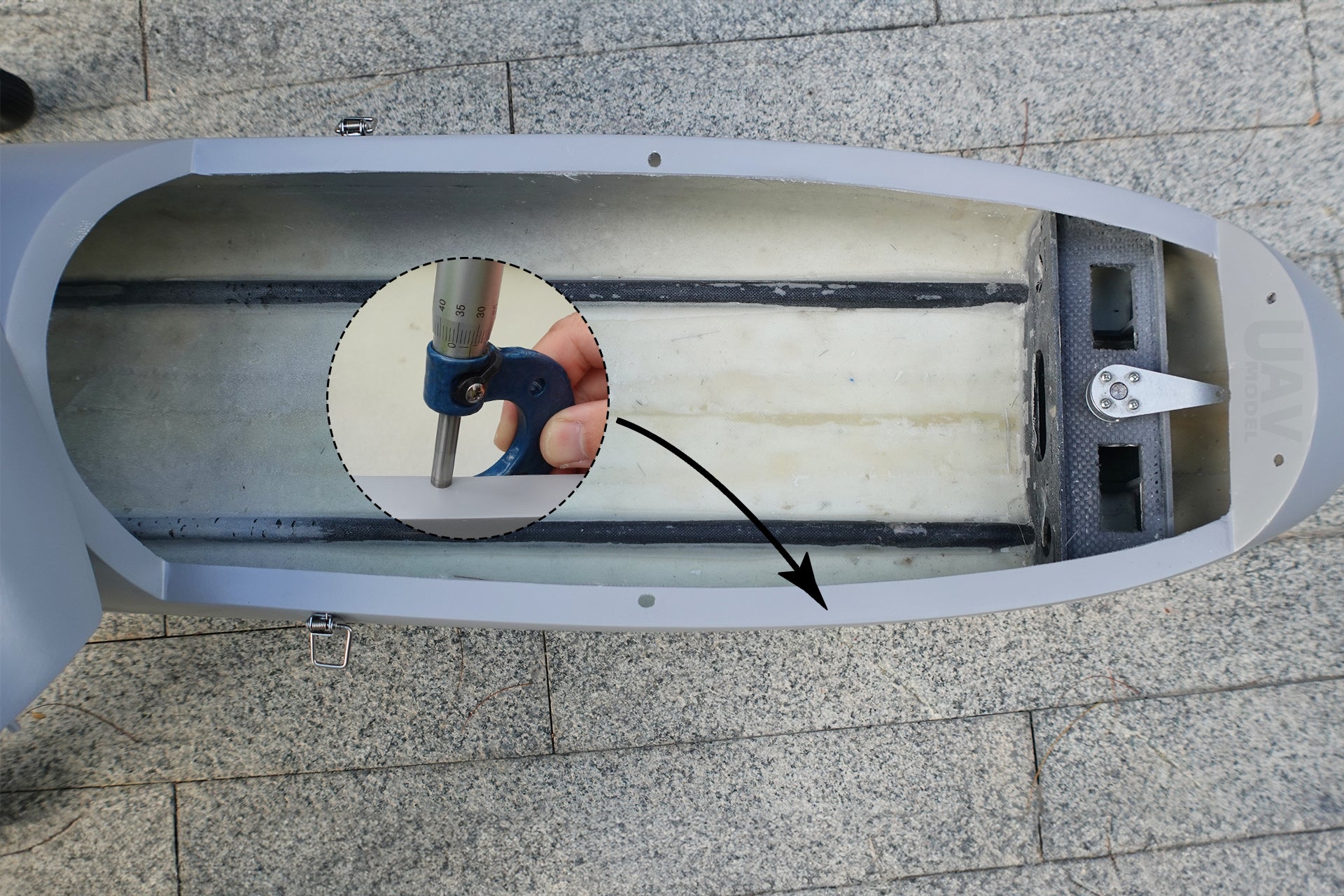

| Payload Bay Dimensions (L×W×H) | 560 mm × 220 mm × 220 mm |
| Empty Weight | 8 kg |
| Maximum Payload Capacity | 4 kg |
| Maximum Takeoff Weight (MTOW) | 15 kg |
| Cruising Speed | 30 m/s (approx. 108 km/h) |
| Maximum Speed | 33 m/s (approx. 118.8 km/h) |
| Stall Speed | 24 m/s (approx. 86.4 km/h) |
| Maximum Flight Time | Up to 2 Hours |
| Recommended Power Supply | 22.2V (6S LiPo / Li-ion Battery) |

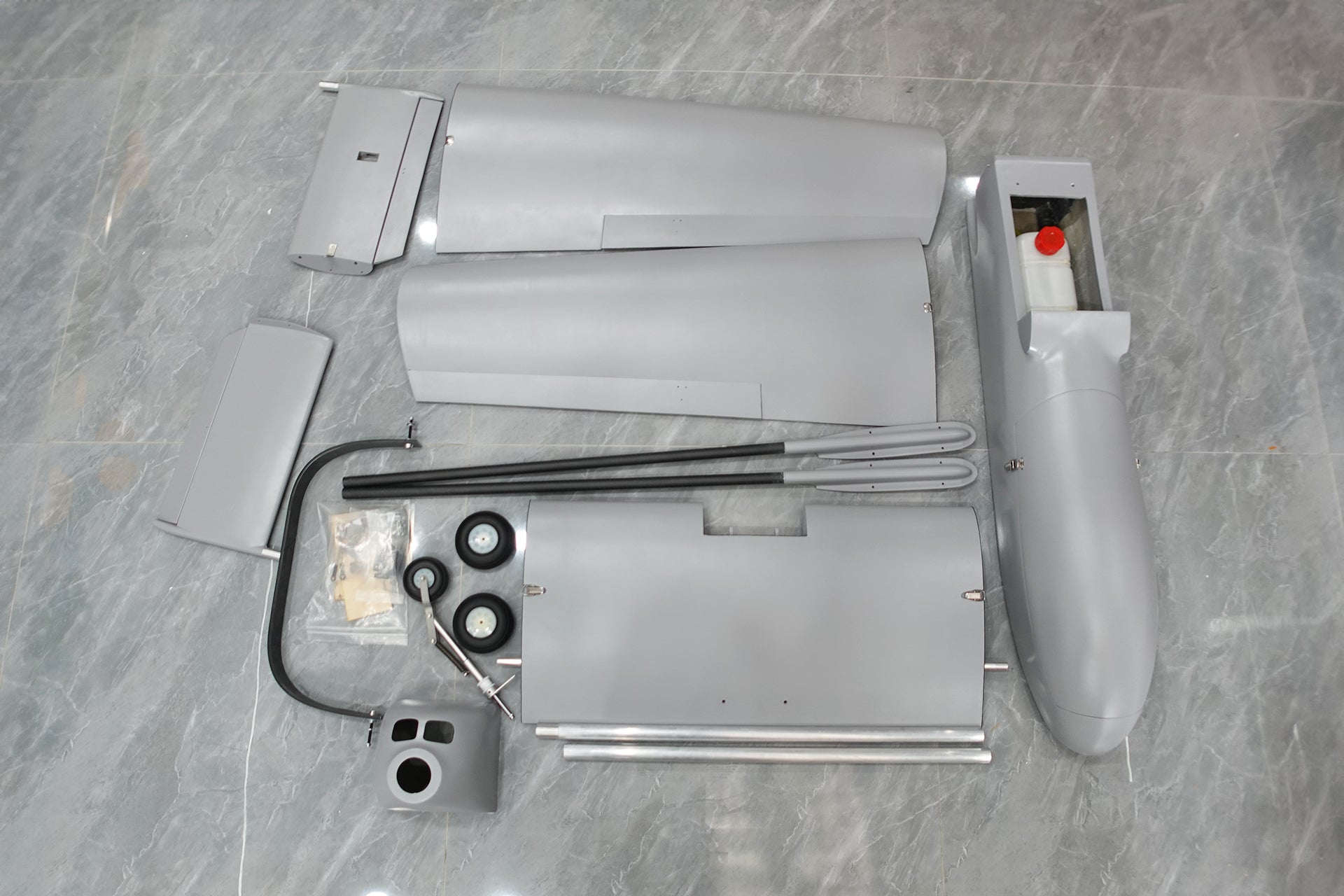

Package options & included parts
| Component Description | KIT Version | PNP(M) Version |
|---|---|---|
| Flying Airframe Platform | ||
| SR260 Outer Wings | 2 Pcs | 2 Pcs |
| SR260 Mid-Wing Section | 1 Pc | 1 Pc |
| SR260 Mainframe Fuselage | 1 Pc | 1 Pc |

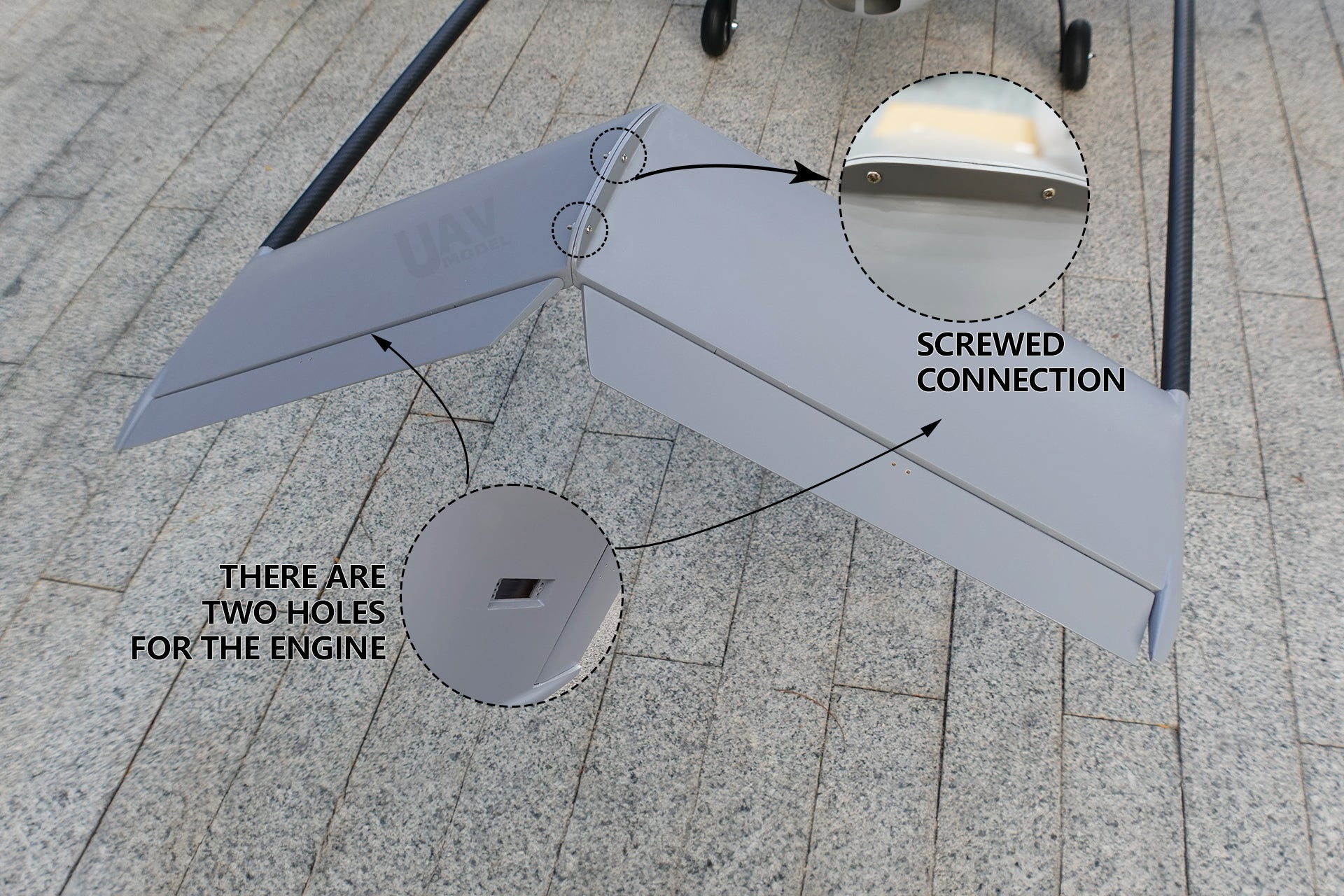

| SR260 V-Tail Surfaces | 2 Pcs | 2 Pcs |

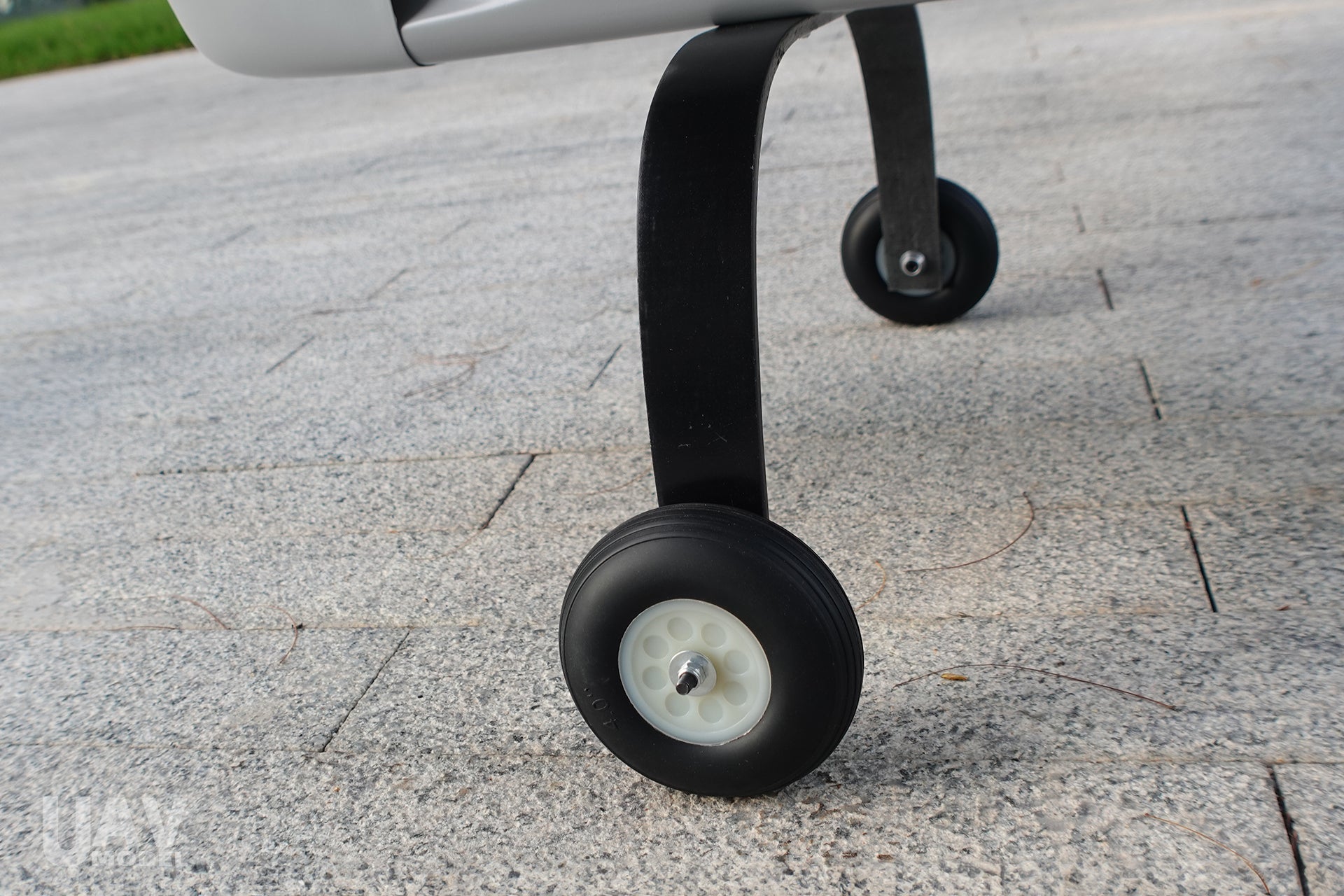

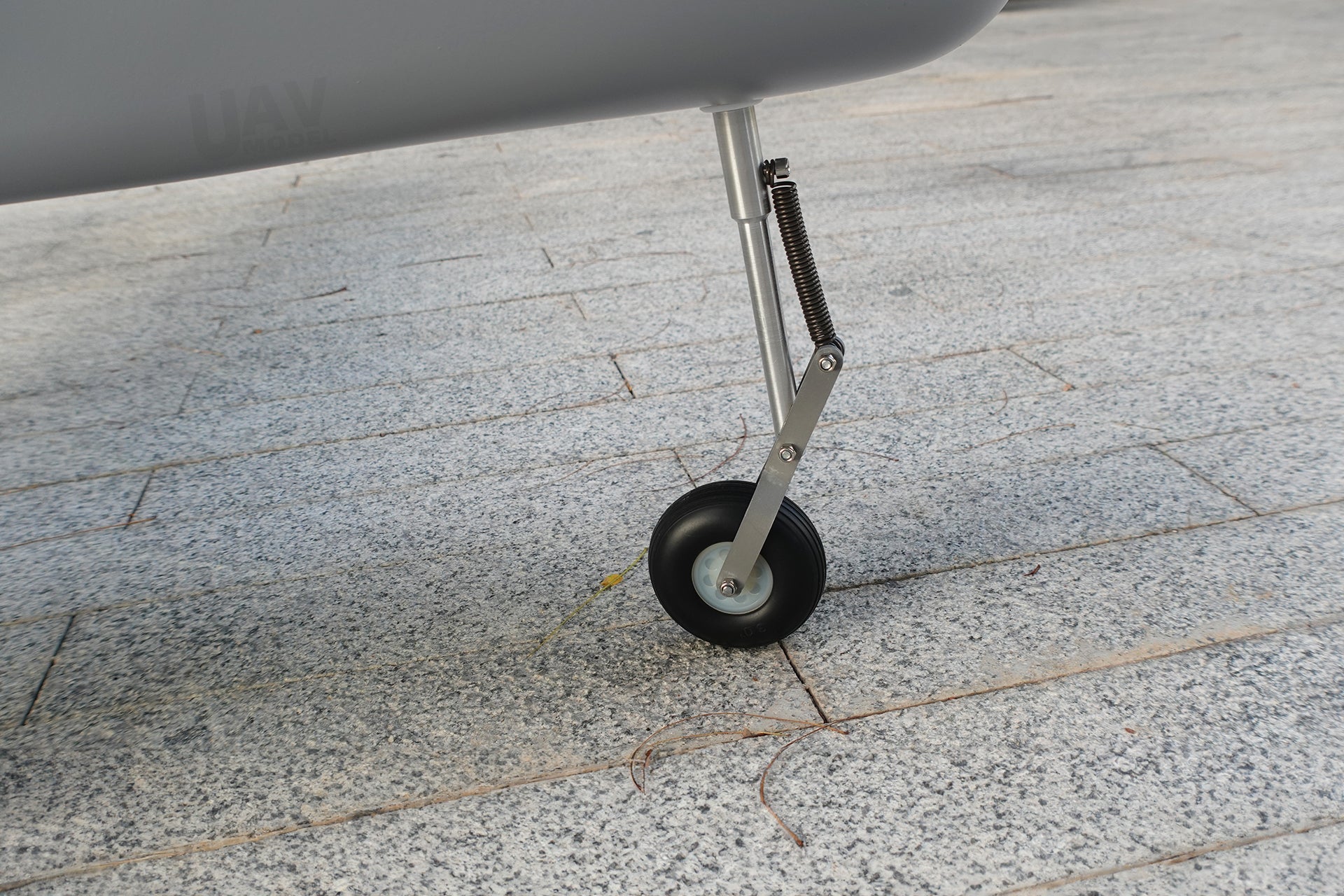

| SR260 Landing Gear Assembly | 1 Set | 1 Set |
| SR260 V-Tail Struts | 2 Pcs | 2 Pcs |
| SR260 Engine Cowling | 1 Pc | 1 Pc |
| Power & Hardware Package | ||
| Tailtrust Motor | — | 1 Pc |
| Tailtrust ESC (Electronic Speed Controller) | — | 1 Pc |
| Tailtrust Pusher Propeller | — | 1 Pc |
| Control Servos | — | 5 Pcs |
| Airspeed Pitot Tube | — | 1 Pc |
| Complete Hardware Parts Package | — | 1 Set |
Product questions
Payload space & installation
Sensor review: Check mounting access, center of gravity, cable routing and power demand with the payload installed. Ask who will verify the complete setup.
Q2: What is the difference between the KIT and PNP versions?
Package contents: Compare the KIT and PNP component lists below. Confirm propulsion, servos, wiring, avionics and any customer-supplied equipment in the written quote; PNP does not mean ready to fly.
Flight-control requirements
Avionics and support: Share the flight controller, interfaces and support you need. Confirm compatibility, installation work and documentation for the exact configuration.
Package options & included parts
Battery and power: Ask for a wiring diagram and the specified voltage, cell count, capacity and connectors for this package. Confirm these together before choosing a battery.
