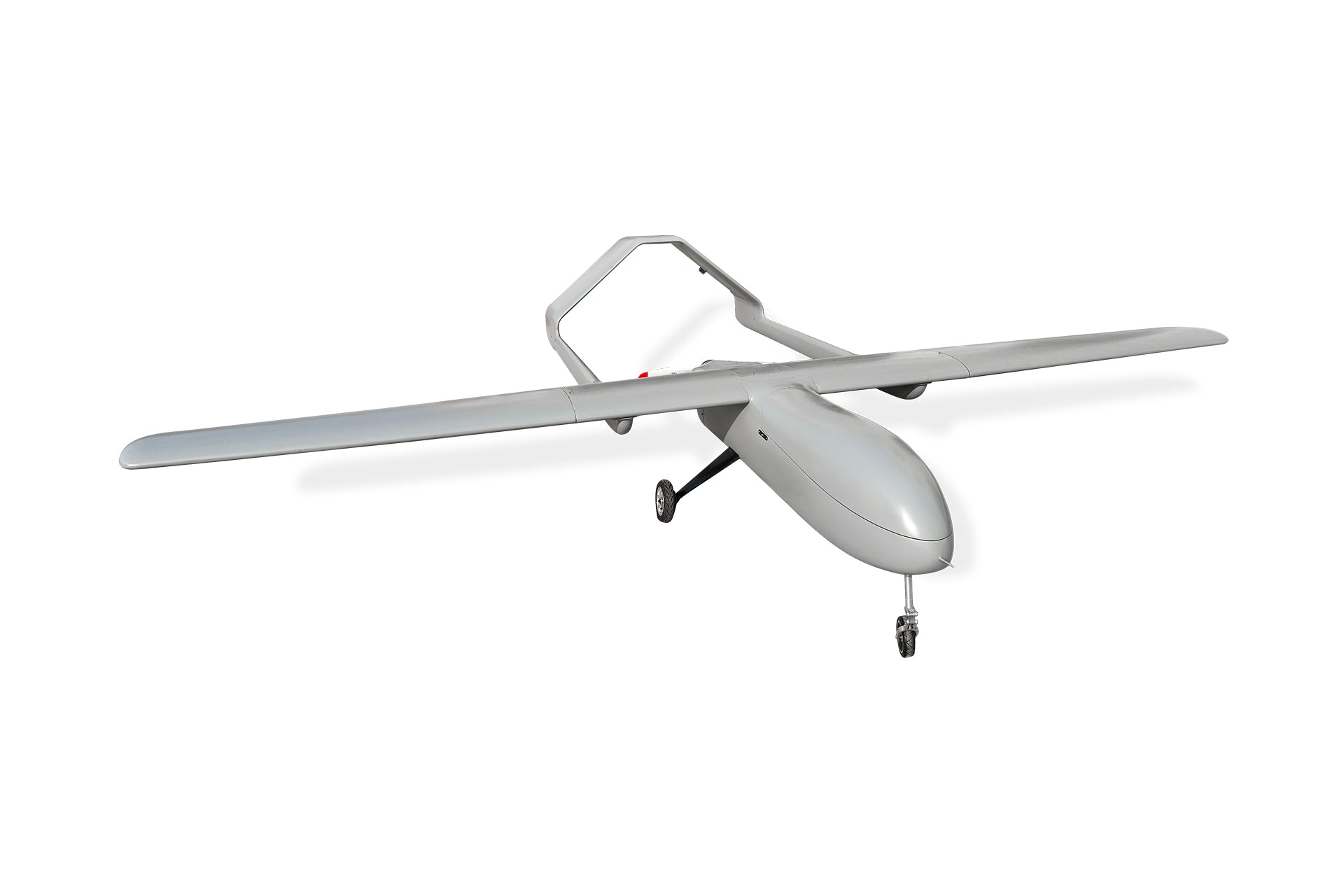

GAUTEN UAV 2900 mm Fiberglass Fixed-Wing Drone
Ask for a quote for your selected package.
View product
Fixed-wing / GAUTEN UAV

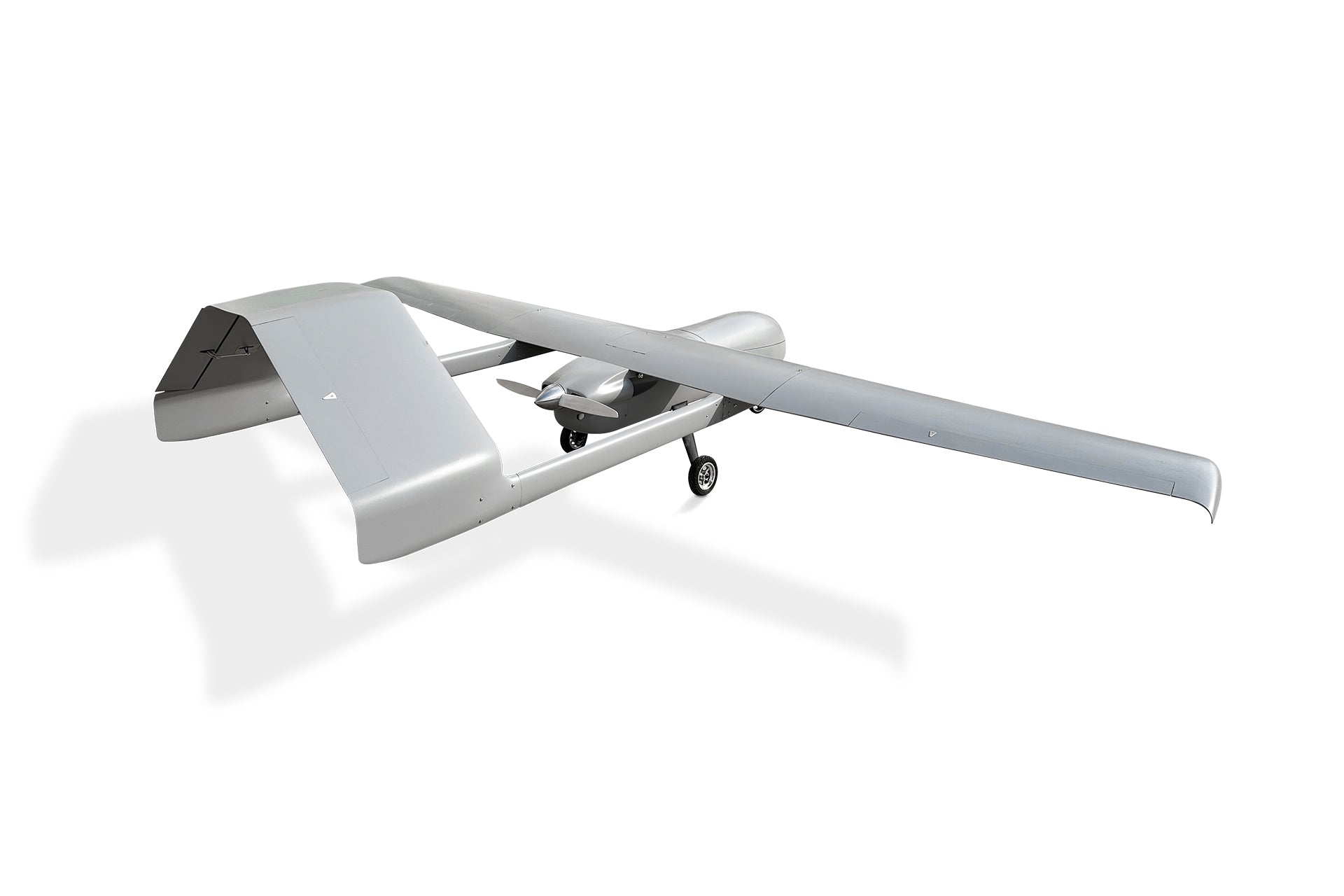

GAUTEN UAV S600 V-Tail Fixed-Wing Drone - Engine Version
- Listed wingspan
- 6000 mm
- Listed material
- Carbon Fiber
- Listed payload capacity
- 30 kg
Listed values depend on the configuration. Confirm the final specifications with sales.
Export and dispatch: confirm each stage
Our current airframe order process includes Chinese dual-use export licence applications, including for bare airframes. This is our handling process, not a blanket legal classification of every product. Document preparation, export review, production and freight must be confirmed separately; approval and a total delivery date are not guaranteed.
Read the export and dispatch noticeREQUEST A QUOTE
Share the package, quantity and destination. Confirm included parts and delivery terms in your quote.
Contact sales to confirm availability.
Tell us your model, payload, application and package choice. Specifications below come from the original listing; confirm them for your final configuration.
GAUTEN UAV S600 V-Tail Fixed-Wing Drone - Engine Version — product details
The S600 engine V-tail listing describes a 6000 mm carbon-fiber fixed-wing drone. Its source tables use SS600 component names; confirm the model designation, engine package and transport requirements.
Key Performance Highlights:
- Flight performance: Use the source-listed values in the table as a starting point. Confirm propulsion, payload, power or fuel load, weather and test conditions for your final system.
- Production and shipping: Ask for the current production schedule, packing details and freight estimate. Delivery depends on the selected package and destination.
- Airframe construction: Review the listed material, dimensions and structural parts. Ask for model-specific drawings and inspection information; material alone does not prove weather resistance or service life.
- Payload installation: Check the listed bay dimensions and payload limit. Sensor fit also depends on mounts, balance, power and data interfaces; compatibility must be confirmed.
- Performance evidence: Ask which configuration and test conditions produced the listed values. Do not treat maximum figures as guaranteed results for every payload.
Listed technical specifications
| Category | Parameter | Specification |
|---|---|---|
| Aircraft Specifications | Material | Carbon Fiber |
| Wingspan | 6000 mm | |
| Length | 3500 mm | |
| Payload Bay Dimensions (L*W*H) | 920 mm x 340 mm x 350 mm | |
| Wing Area | 312 dm² | |
| Empty Weight | 33.6 kg | |
| Payload Capacity | 30 kg | |
| Maximum Takeoff Weight (MTOW) | 110 kg | |
| Fuel Tank Capacity | 27 L | |
| Flight Performance | Cruising Speed | 35 m/s |
| Maximum Speed | 40 m/s | |
| Stall Speed | 24 m/s | |
| Maximum Flight Time | 7 Hours |
Package options & included parts
| System Category | Component Description | KIT Version | PNP (Engine) Version |
|---|---|---|---|
| Flying Platform Frame | SS600 Outer Wing | 2 pcs | 2 pcs |
| SS600 Mid-Wing | 1 pc | 1 pc | |
| SS600 Main Body Fuselage | 1 pc | 1 pc | |
| SS600 Tail Booms | 2 pcs | 2 pcs | |
| SS600 Landing Gear System | 1 set | 1 set | |
| SS600 Fuel Tank (27L) | 1 pc | 1 pc | |
| SS600 Engine Cowling | 1 pc | 1 pc | |
| Power System & Servos | Tail Thruster Engine | — | 1 set |
| Tail Thruster Propeller Blades | — | 1 set | |
| Digital Servos | — | 8 pcs | |
| Pitot Airspeed Tube | — | 1 pc | |
| Hardware & Parts Packaging | — | 1 set |
Product questions
Q: What is the main structural material used in the GAUTEN UAV SS600?
Refer to the source-listed material and component tables. Ask sales to confirm the exact construction and model revision, particularly where the title and table use different labels.
Q: What payload capacity can the SS600 carry?
Check the listed payload limit and bay dimensions against your equipment. Share its mass, dimensions, mounting, power and data needs. Space and weight limits alone do not confirm sensor compatibility.
Q: What is the difference between the KIT and PNP(E) configurations?
Compare the component tables for the exact option you select. Confirm the airframe, propulsion, servos, wiring and customer-supplied items in your quote. PNP is not a complete ready-to-fly system.
Q: What is the maximum flight endurance of the GAUTEN UAV SS600?
The table retains the original flight-time and speed figures. Ask for the payload, propulsion, energy load, weather and test records behind the figures for your chosen configuration.
